Water Heater Anode Rod Replacement in Rockford, IL
Rockford Water Heaters helps Rockford, IL homeowners with water heater replacement, installation and repair. This page covers Water Heater Anode Rod Replacement in Rockford, IL. Every recommendation here is grounded in the details that decide the job: glass-lined steel tanks, magnesium and aluminum-zinc anodes, atmospheric and power-vent draft, gas sediment traps and expansion tanks.
The anode rod is a length of magnesium or aluminum suspended inside the tank whose entire job is to corrode instead of the tank. Replace it on schedule and you can add years to a water heater; ignore it and rust moves on to the steel shell.
Get Your Free Water Heater Quote
Tell us about your water heater needs and we will send you a quote with no obligation.
How the Sacrificial Anode Protects Your Tank
A storage tank is steel with a glass lining. Any imperfection in that lining exposes bare steel to hot water, which is an ideal environment for corrosion. The anode rod is a more reactive metal, so electrochemistry attacks it first. As long as the rod has material left, the tank is protected.
Once the rod is consumed down to its core wire, protection ends and the tank begins corroding. That is the moment the countdown to a leaking tank really starts — and it happens quietly, years before there's any visible sign.
When to Inspect and Replace
- First inspection at around three years, then every two to three years after.
- Sooner if you have a water softener — softened water consumes anodes noticeably faster.
- Replace when the rod is heavily pitted or the core wire is exposed over much of its length.
- Consider it if you get a sulfur or rotten-egg smell in the hot water — switching rod material often solves it.
Inspection is easiest to fold into an annual maintenance visit or a flush, since the technician is already at the tank.
Rod Types and Choosing the Right One
| Type | Best suited to | Notes |
|---|---|---|
| Magnesium | Most municipal water | Strong protection; consumed faster in softened water |
| Aluminum / zinc alloy | Homes with sulfur odor | The zinc content commonly reduces the rotten-egg smell |
| Powered (impressed current) | Difficult water chemistry | Doesn't deplete; needs an electrical outlet |
| Flexible / segmented | Low overhead clearance | Installs where a rigid rod won't fit above the tank |
What the Job Involves

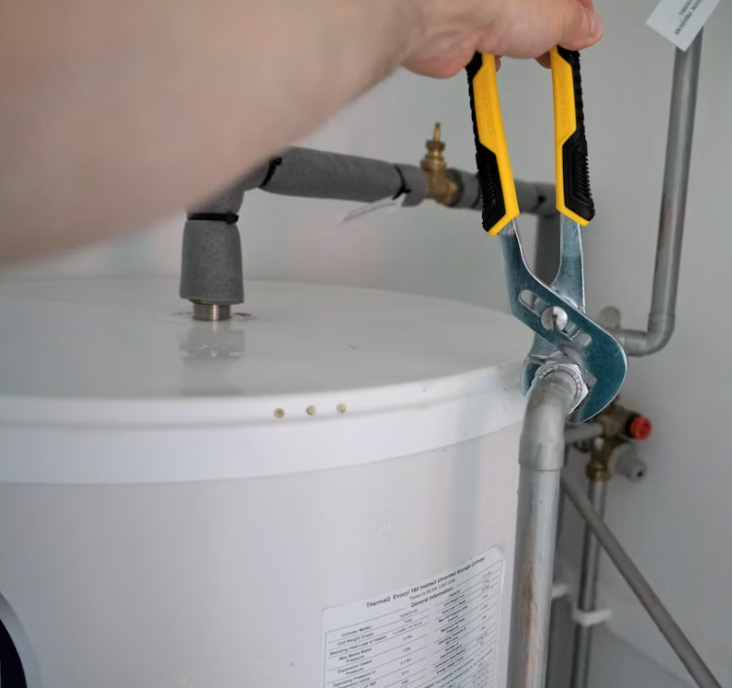

The technician shuts off the heat source and water, relieves pressure, and breaks loose the hex head at the top of the tank — often the hardest part, since rods can seize after a decade. Some tanks have a combination anode built into the hot outlet, which changes the approach. The new rod goes in with fresh thread sealant, then the tank is refilled and checked for leaks.
Low ceiling above the tank? A segmented rod solves that without moving the heater.
Is It Worth Doing on an Older Water Heater?
On a tank under about eight years old with no sign of tank corrosion, yes — it's inexpensive insurance. On a twelve-year-old unit already showing rust at the fittings or base, the protection comes too late and the money is usually better applied toward replacement. A pro can tell you which situation you're in after a look at the rod and the tank.
Magnesium, Aluminium-Zinc and Powered Anodes
| Type | Best for | Trade-off |
|---|---|---|
| Magnesium | Most protective in typical municipal water | Consumed fastest; can drive sulphur odour with certain bacteria |
| Aluminium-zinc | Softened water and rotten-egg odour | Slightly less protective; leaves more sludge |
| Powered (impressed current) | Difficult water or hard-to-service installs | Higher cost, needs a receptacle, no sacrificial replacement |
| Flexible / segmented | Low-clearance basements and closets | Same protection, easier installation |
Galvanic protection works because magnesium and zinc sit above steel on the anodic index, so they corrode first. Once the rod is spent, the exposed steel at the tank's weld seams becomes the sacrificial metal instead — which is the moment the countdown to a leak actually begins.
Access, Torque and Combination Rods
The practical obstacles are physical, not technical. The hex head sits under the top jacket or beneath a foam plug, and a rod that has sat for eight years commonly needs a 1 1/16 inch socket on a breaker bar with the tank braced so it does not rotate on its connections. An impact wrench solves most seized rods; leverage against an unsupported tank can twist the inlet piping instead.
Clearance is the other issue: a standard rigid rod is roughly the height of the tank, so a basement with ductwork overhead needs a segmented rod. Where there is no dedicated port at all, the unit likely uses a combination anode built into the hot outlet nipple — replaceable, but the outlet piping has to come apart first.
Replacement is worth pairing with a flush, since the tank is already drained down and the same visit covers both maintenance items.
Frequently Asked Questions
What does an anode rod do?
It corrodes in place of your tank. Being a more reactive metal, it attracts the corrosion that would otherwise attack exposed steel inside the water heater.
How often should the anode rod be replaced?
Inspect around year three and every two to three years after. Actual replacement intervals commonly land between three and five years, sooner with softened water.
Can I check the anode rod myself?
It's possible, but the rod is often seized in place and requires significant torque plus proper draining. Many homeowners have it inspected during annual service instead.
Why does my hot water smell like rotten eggs?
It's usually a reaction between a magnesium anode and sulfate-reducing bacteria in the water. An aluminum/zinc rod frequently resolves it.
Does replacing the anode rod really extend tank life?
It's one of the few maintenance items with a direct causal link to tank longevity, because a depleted rod means the tank itself starts corroding.
Do tankless water heaters have anode rods?
Most don't, because there's no storage tank to protect. A few hybrid designs do; descaling is the equivalent maintenance for on-demand units.
